Description

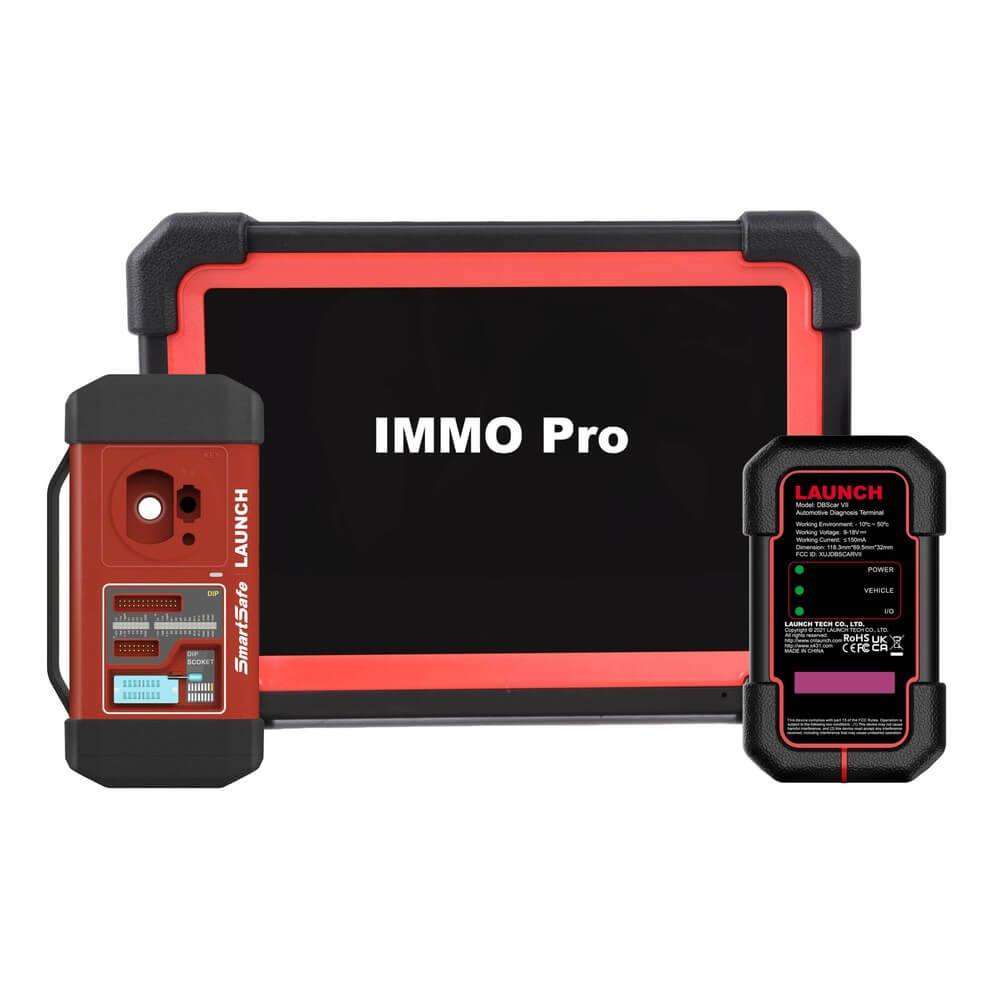

X-431 IMMO PRO is a newly launched diagnostic tool with advanced IMMO functions and basic diagnostic functions.
IMMO Functions
1. Supports key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Anti-theft modules replacement
Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
3. Anti-theft password reading
Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
4. Key Matching
Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc
Intelligent Diagnostics Functions
1. Intelligent diagnostics includes read/clear DTCs, live data streaming, etc.
2. Support CAN FD and DoIP* communication protocols.
3. 15 advanced service functions.
4. Pre-scan and post-scan diagnostic report.
5. Wireless and wired diagnostic.
6. One-stop Info Center includes vehicle repair information and latest updates.
7. Support diagnostic history reviewing.
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU anti-theft data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
– Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
– Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
– Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Service Functions
Specifications:

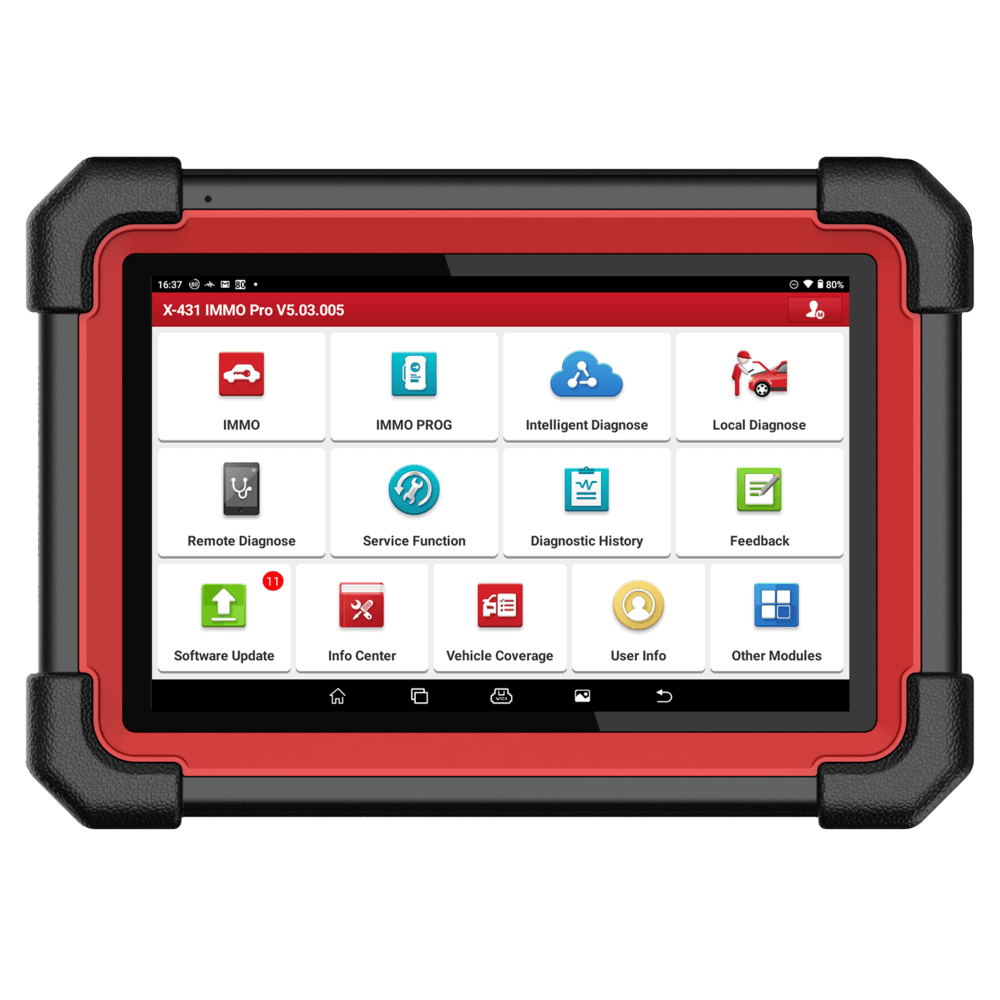

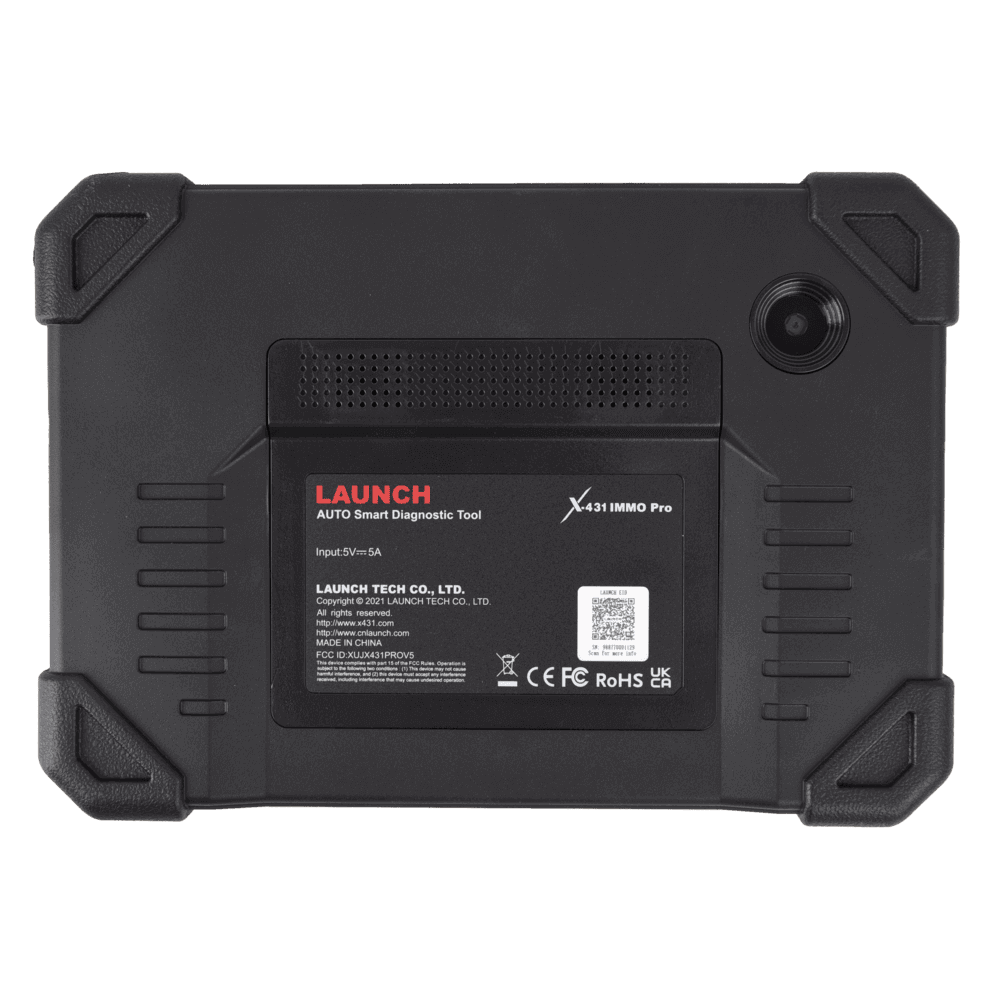

AUSCAN IMMO Pro Tablet:
| Processor | 2.0GHz, Quad-Core |
| Operation System | Android 10.0 |
| Memory | 4GB |
| Storage | 64GB |
| Battery | 47.88Wh (7.6V,6300mAh) |
| Display | 8′, 1280*800 |
| Camera | Rear 8MP |
| WIFI | 2.4GHz / 5GHz |
| Interface | TYPE A *1 & TYPE C*1 |
| Work Temperature | 0~50℃ |
| Dimension | 234 x 166 x 39.5mm |

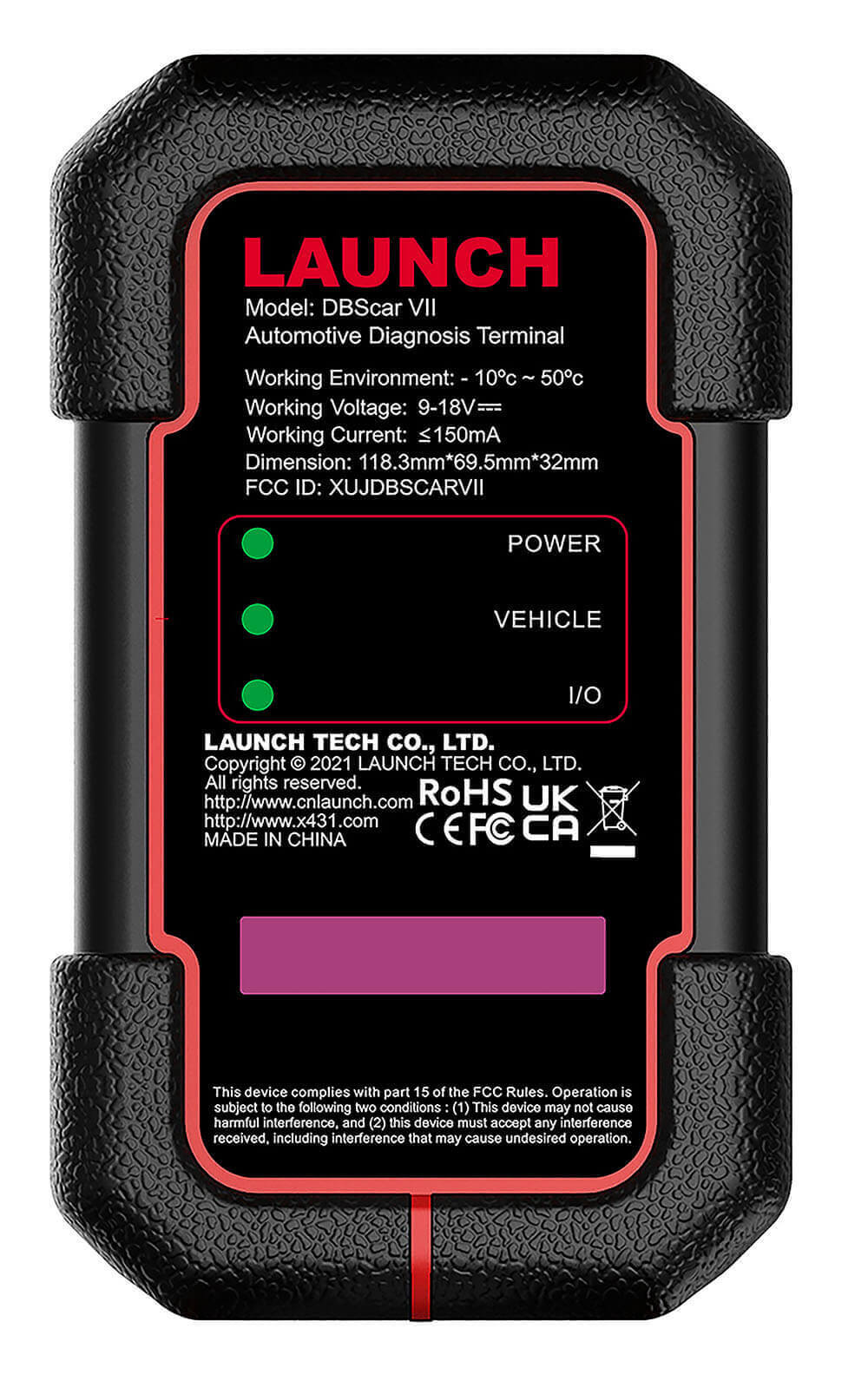

DBSCar VII
| Working Voltage | DC 9 – 18V | |
| Working Temperature | 0~50℃ | |
| Communication | Bluetooth | |
| Indicators | Power | ON: Connect to a vehicle |
| Vehicle | Blink: When VCI is communicating with vehicle’s ECU | |
| IO | Blue: Bluetooth communication between vehicle and VCI
Red: Wired USB communication between vehicle and VCI |
|
| Dimension | 118.3 x 69.5 x 32 mm | |

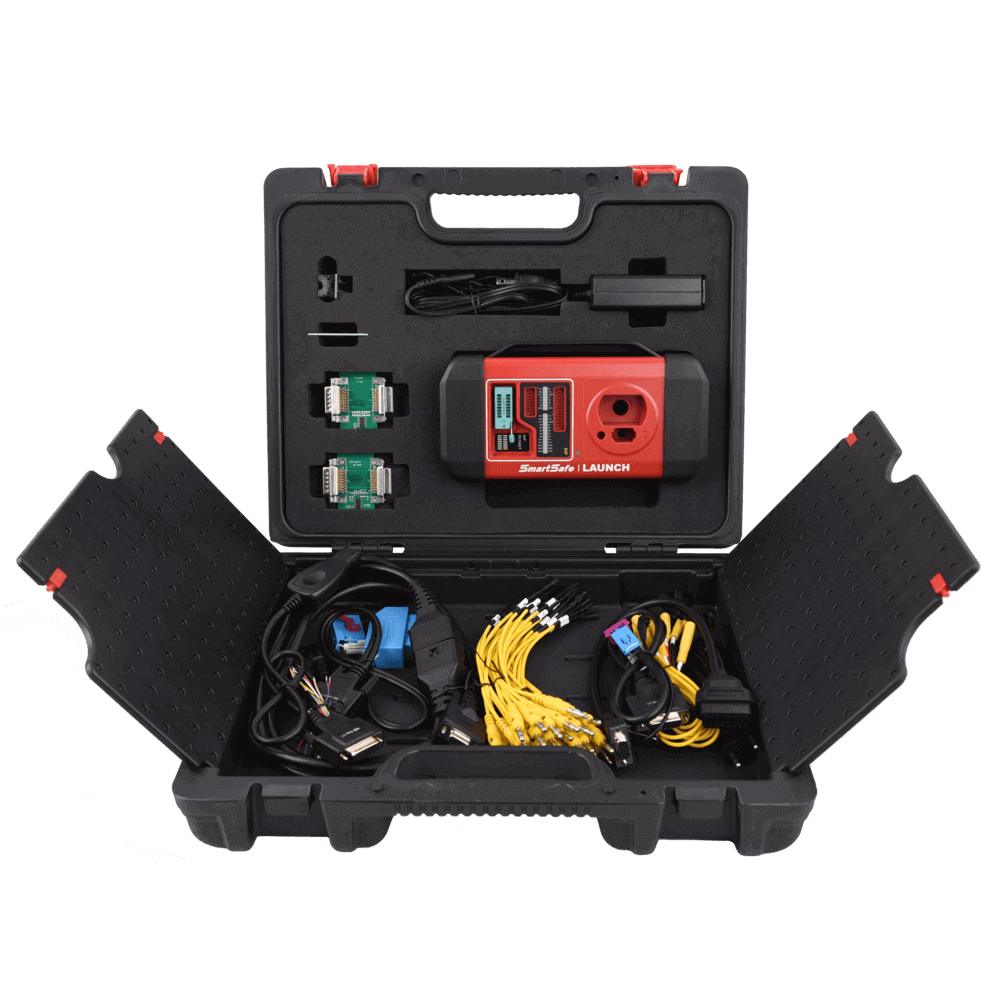

X-PROG3
| Interface | DB26, DB15 |
| Input Voltage | DC12V |
| Input Current | 500mA |
| Working Temperature | 0-50℃ |
| Storage Temperature | -20-70℃ |
| Vehicle Key Slot | To place car key for RF defection |
| DB26 | Used to connect to each anti-theft cables |
| Infrared Slot For Benz Key | Used to place the Mercedes-Benz infrared key to perform the key matching function |
| Key IC Hole | Used to place the key chip to perform the key matching function |
| Status Indicator | Power supply indicator lamp |
| DIY Slot | Used to connect the anti-theft ECU pin through the cable to read and write data |
| Locker | To tighten loose EEPROM board |
| DC 12V | Used to connect to the DC12 power supply |
| DB15 | To connect with vehicle’s DLC |
| EEPROM Slot | To insert EEPROM board |
SUPPORTED LANGUAGES:
English, Chinese and other language depending the car makes. Fees apply for other languages other than English or Chinese.
